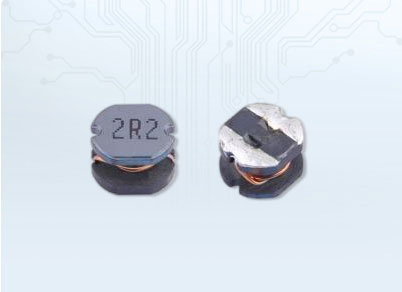

ACD series-Unshielded Wire Wound SMD Power Inductors

● Thin and high current.

● SMT type.

● Packaging: Carrier packaging.

● RoHS, halogen-free, and REACH compliance.

● Working temperature: -40 ℃~+125 ℃.

Download
Part NumberInductance
@100kHz,1V		Inductance
Tolerance		Heat Rating Current Max.Saturation Current Max.DC Resistance Typ.RoHS
UnitsμH-AAΩ-
SymbolL-IrmsIsatDCR-
ACD52-221K220±10%0.18-3.7RoHS
ACD52-181K180±10%0.2-3RoHS
ACD52-151K150±10%0.22-2.6RoHS
ACD52-121K120±10%0.25-2RoHS
ACD52-101K100±10%0.35-1.75RoHS
ACD52-1R8N1.8±30%3.5-0.07RoHS
ACD52-1R5N1.5±30%3.7-0.06RoHS
ACD52-1R2N1.2±30%4-0.06RoHS
ACD52-1R0N1±30%4.2-0.05RoHS
ACD43-471K470±10%0.15-7.2RoHS
ACD43-391K390±10%0.17-5.5RoHS
ACD43-331K330±10%0.2-3.76RoHS
ACD43-271K270±10%0.26-2.89RoHS
ACD43-221K220±10%0.29-2.156RoHS
ACD43-181K180±10%0.31-1.85RoHS
ACD43-151K150±10%0.35-1.4RoHS
ACD43-121K120±10%0.38-1.22RoHS
ACD43-101K100±10%0.41-1.19RoHS
ACD43-1R8N1.8±30%2.91-0.042RoHS
ACD43-1R5N1.5±30%3.2-0.039RoHS
ACD43-1R2N1.2±30%3.6-0.035RoHS
ACD43-1R0N1±30%3.8-0.033RoHS
ACD32-331K330±10%0.1-10.19RoHS
ACD32-271K270±10%0.12-8.24RoHS
ACD32-221K220±10%0.14-6.56RoHS
ACD32-181K180±10%0.15-5.11RoHS
ACD32-151K150±10%0.16-4.2RoHS
ACD32-121K120±10%0.28-3.19RoHS
ACD32-101K100±10%0.31-2.84RoHS
ACD32-1R8N1.8±30%2.35-0.065RoHS
ACD32-1R5N1.5±30%2.6-0.05RoHS
ACD32-1R2N1.2±30%3.1-0.048RoHS
ACD32-1R0N1±30%3.34-0.045RoHS
ACD31-221K220±10%0.12-9RoHS
ACD31-181K180±10%0.14-5.699RoHS
ACD31-151K150±10%0.16-4.774RoHS
ACD31-121K120±10%0.17-4.084RoHS
ACD31-101K100±10%0.19-2.87RoHS
ACD31-1R5N1.5±30%1.55-0.062RoHS
ACD31-1R0N1±30%1.6-0.048RoHS
ACD108-680M68±20%1.9-0.24RoHS
ACD108-470M47±20%3-0.117RoHS
ACD108-330M33±20%3-0.1RoHS
ACD107-122K1200±10%0.35-3.5RoHS
ACD107-102K1000±10%0.46-3RoHS
ACD107-681M680±20%0.5-2.25RoHS
ACD107-561M560±20%0.6-1.9RoHS
ACD107-471M470±20%0.65-1.48RoHS
ACD107-391M390±20%0.75-1.3RoHS
ACD107-331M330±20%0.8-1.15RoHS
ACD107-271M270±20%0.9-0.97RoHS
ACD107-221M220±20%0.95-0.73RoHS
ACD107-181M180±20%1-0.63RoHS
ACD107-151M150±20%1.2-0.47RoHS
ACD107-121M120±20%1.3-0.4RoHS
ACD107-101M100±20%1.4-0.35RoHS
ACD107-820M82±20%1.5-0.25RoHS
ACD107-680M68±20%1.65-0.22RoHS
ACD107-560M56±20%1.85-0.19RoHS
ACD107-470M47±20%1.95-0.17RoHS
ACD107-390M39±20%2.1-0.14RoHS
ACD107-330M33±20%2.3-0.12RoHS
ACD107-270M27±20%2.4-0.11RoHS
ACD107-220M22±20%2.6-0.1RoHS
ACD107-180M18±20%3-0.09RoHS
ACD107-150M15±20%3.1-0.08RoHS
ACD107-120M12±20%3.4-0.07RoHS
ACD107-100M10±20%3.5-0.06RoHS
ACD107-8R2M8.2±20%3.51-0.045RoHS
ACD107-6R8M6.8±20%3.52-0.035RoHS
ACD107-5R6M5.6±20%4.3-0.024RoHS
ACD107-4R7M4.7±20%5.45-0.019RoHS
ACD107-3R9M3.9±20%6.35-0.017RoHS
ACD107-3R3M3.3±20%6.8-0.016RoHS
ACD107-2R2M2.2±20%8-0.012RoHS
ACD107-1R8M1.8±20%8.6-0.011RoHS
ACD107-1R0M1±20%9.5-0.008RoHS
ACD106-252K2500±10%0.35-5.6RoHS
ACD106-102K1000±10%0.5-2.8RoHS
ACD106-101M100±20%1.8-0.2RoHS
ACD106-680M68±20%2.5-0.16RoHS
ACD106-470M47±20%2.8-0.118RoHS
ACD106-330M33±20%3-0.106RoHS
ACD106-220M22±20%3.6-0.08RoHS
ACD106-150M15±20%4-0.06RoHS
ACD105-681M680±20%0.3-2.25RoHS
ACD105-561M560±20%0.33-1.9RoHS
ACD105-471M470±20%0.4-1.5RoHS
ACD105-391M390±20%0.46-1.34RoHS
ACD105-331M330±20%0.5-1.2RoHS
ACD105-271M270±20%0.54-0.87RoHS
ACD105-221MS1220±20%1-0.78RoHS
ACD105-221M220±20%0.65-0.78RoHS
ACD105-181M180±20%0.7-0.57RoHS
ACD105-151M150±20%0.74-0.51RoHS
ACD105-121M120±20%0.87-0.37RoHS
ACD105-101MS1100±20%1.5-0.37RoHS
ACD105-101M100±20%0.95-0.34RoHS
ACD105-820M82±20%0.98-0.28RoHS
ACD105-680MS168±20%1.9-0.26RoHS
