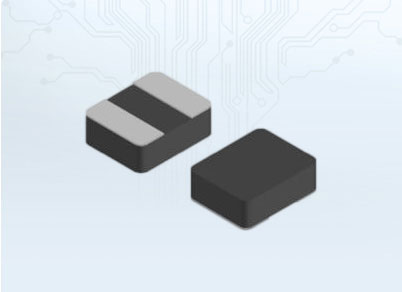

● The winding type achieves miniaturization and thinness.
● Metal material, high current, low loss.
● High saturation current performance is achieved through metal powder magnetic cores.
● Closed magnetic circuit design to reduce magnetic flux leakage.
● Vinyl thermal spraying provides better surface density.
● Working temperature: -40 ℃ to+125 ℃.
| Part Number | Inductance @100kHz,1V | Inductance Tolerance | Heat Rating Current Max. | Saturation Current Max. | DC Resistance Typ. | RoHS |
|---|---|---|---|---|---|---|
| Units | μH | - | A | A | mΩ | - |
| Symbol | L | - | Irms | Isat | DCR | - |
