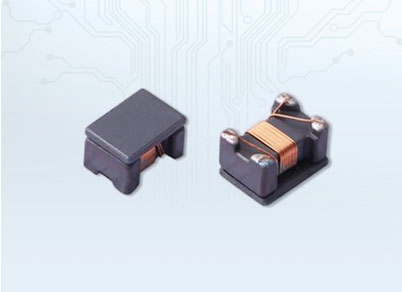

APWB series-Wire Wound Common mode filter

● Excellent weldability.

● Prevent high-frequency common mode noise.

● Working temperature: -40 ℃~+85 ℃.

● RoHS and REACH compliance.

Download
Part NumberImpedanceImpedance
Tolerance		Rated
Voltage		Test
Freq.		Heat Rating Current Max.DC Resistance Max.Insulation Resistance Min.RoHS
UnitsμH-VoltsMHzmAΩMΩ-
SymbolL-VDCFreq.IrmsDCRIR-
APWB4532-201T2200μH+50%/-30%50100/0.11004.5 10RoHS
APWB4532-101T2100μH+50%/-30%50100/0.12002.0 10RoHS
APWB4532-510T251μH+50%/-30%50100/0.12301.0 10RoHS
APWB4532-220T222μH+50%/-30%50100/0.13101.0 10RoHS
APWB4532-110T211μH+50%/-30%50100/0.13600.6 10RoHS
APWB3225-201T2200μH+50%/-30%80100/0.1704.8 10RoHS
APWB3225-101T2100μH+50%/-30%80100/0.11501.5 10RoHS
APWB3225-510T251μH+50%/-30%80100/0.12000.7 10RoHS
APWB3225-220T222μH+50%/-30%80100/0.13000.5 10RoHS
APWB3225-110T211μH+50%/-30%80100/0.14000.4 10RoHS
