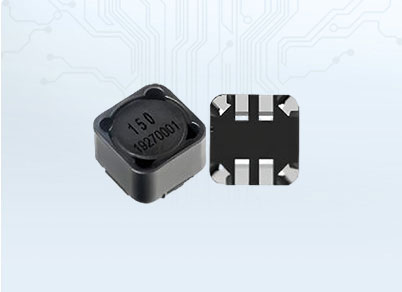

AWPR Series – Coupled Inductors
● High efficiency & high coupling coefficient
● High rated current, low DCR
Download
Part Number
Inductance
(uH ±20%)
L,Q Test Freq
(Hz,V)
DC Resistance
(mΩ)
Heat Rating Current
(A)
Saturation Current
(A)
Max.
Typ.
Inductance
drops10%
Inductance
drops 30%
AWPR1208-4R7M
4.7
100K,0.1V
25
5
9.2
12.9
AWPR1208-6R8M
6.8
100K,0.1V
29
4.5
8.1
11.4
AWPR1208-100M
10
100K,0.1V
36
4.1
6.8
9.8
AWPR1208-150M
15
100K,0.1V
40
3.6
5.2
7
AWPR1208-220M
22
100K,0.1V
72
3
4.7
6.7
AWPR1208-270M
27
100K,0.1V
96
2.7
3.9
5.7
AWPR1208-330M
33
100K,0.1V
105
2.5
3.6
5.2
AWPR1208-470M
47
100K,0.1V
132
2.2
3.1
4.3
AWPR1208-680M
68
100K,0.1V
206
1.8
2.5
3.6
AWPR1208-101M
100
100K,0.1V
280
1.5
2.1
3
AWPR1210-3R9M
3.9
100K,0.1V
18
7
12.5
17.6
AWPR1210-120M
12
100K,0.1V
28
5.6
7.1
10.4
AWPR1210-330M
33
100K,0.1V
75
3.1
4
6.2
