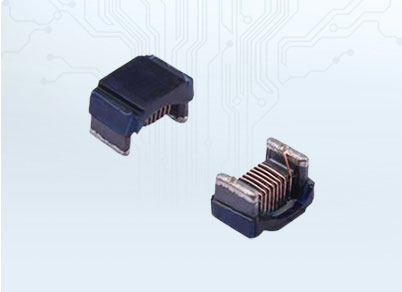

AHW-F series-Ferrite Wire Wound Chip Inductor

● Small chips are suitable for surface mounting.

● High inductance adopts ferrite material.

● Working temperature: -40 ℃~+85 ℃.

● RoHS, halogen-free, and REACH compliance.

Part Number	Inductance	Inductance Tolerance	L/Q Test Freq.	Heat Rating Current Max.	Quality Factor	Self-resonant Frequency	DC Resistance Max.	RoHS
Units	nH/μH	-	MHz	mA	-	MHz	Ω	-
Symbol	L	-	Freq.	Irms	Q	S.R.F	DCR	-

AHW4532F-102KTF	1000μH	±10%	0.252	90	6	1.4	16.50	RoHS
AHW4532F-821KTF	820μH	±10%	0.796	95	8	1.5	15.00	RoHS
AHW4532F-751KTF	750μH	±10%	0.796	95	8	1.5	14.50	RoHS
AHW4532F-681KTF	680μH	±10%	0.796	100	8	1.5	14.00	RoHS
AHW4532F-561KTF	560μH	±10%	0.796	110	8	1.5	12.50	RoHS
AHW4532F-471KTF	470μH	±10%	0.796	120	8	1.6	10.40	RoHS
AHW4532F-391KTF	390μH	±10%	0.796	130	10	1.8	9.50	RoHS
AHW4532F-331KTF	330μH	±10%	0.796	150	10	2	9.00	RoHS
AHW4532F-271KTF	270μH	±10%	0.796	160	10	2.2	8.50	RoHS
AHW4532F-221KTF	220μH	±10%	0.796	170	10	2.5	8.00	RoHS
AHW4532F-181KTF	180μH	±10%	0.796	200	10	3	4.50	RoHS
AHW4532F-151KTF	150μH	±10%	0.796	200	10	3	3.70	RoHS
AHW4532F-121KTF	120μH	±10%	0.796	220	10	3.3	3.30	RoHS
AHW4532F-101KTF	100μH	±10%	0.796	220	10	4	3.00	RoHS
AHW4532F-820KTF	82μH	±10%	2.52	240	10	5.2	2.80	RoHS
AHW4532F-680KTF	68μH	±10%	2.52	260	10	5.4	2.40	RoHS
AHW4532F-560KTF	56μH	±10%	2.52	290	10	10	2.20	RoHS
AHW4532F-470KTF	47μH	±10%	2.52	300	10	10	2.00	RoHS
AHW4532F-390KTF	39μH	±10%	2.52	350	10	14	1.80	RoHS
AHW4532F-330KTF	33μH	±10%	2.52	350	10	18	1.70	RoHS
AHW4532F-270KTF	27μH	±10%	2.52	400	10	20	1.50	RoHS
AHW4532F-220KTF	22μH	±10%	2.52	450	10	20	1.30	RoHS
AHW4532F-180KTF	18μH	±10%	2.52	500	10	29	1.20	RoHS
AHW4532F-150KTF	15μH	±10%	2.52	500	10	35	1.20	RoHS
AHW4532F-120KTF	12μH	±10%	2.52	550	10	55	1.10	RoHS
AHW4532F-100KTF	10μH	±10%	2.52	550	10	65	1.00	RoHS
AHW4532F-8R2KTF	8.2μH	±10%	7.96	600	10	70	0.85	RoHS
AHW4532F-6R8KTF	6.8μH	±10%	7.96	600	15	80	0.80	RoHS
AHW4532F-5R6KTF	5.6μH	±10%	7.96	650	15	110	0.55	RoHS
AHW4532F-4R7KTF	4.7μH	±10%	7.96	700	15	120	1.00	RoHS
AHW4532F-3R9KTF	3.9μH	±10%	7.96	750	15	135	0.60	RoHS
AHW4532F-3R3KTF	3.3μH	±10%	7.96	800	15	140	0.48	RoHS
AHW4532F-2R7KTF	2.7μH	±10%	7.96	850	15	145	0.37	RoHS
AHW4532F-2R2KTF	2.2μH	±10%	7.96	900	15	150	0.37	RoHS
AHW4532F-1R8KTF	1.8μH	±10%	7.96	950	15	160	0.35	RoHS
AHW4532F-1R5KTF	1.5μH	±10%	7.96	1000	15	180	0.32	RoHS
AHW4532F-1R2KTF	1.2μH	±10%	7.96	1000	15	200	0.35	RoHS
AHW4532F-1R0KTF	1μH	±10%	7.96	1000	15	200	0.22	RoHS
AHW4532F-R82KTF	0.82μH	±10%	25.2	1000	10	250	0.20	RoHS
AHW4532F-R56KTF	0.56μH	±10%	25.2	1000	10	300	0.15	RoHS
AHW4532F-R33KTF	0.33μH	±10%	25.2	1000	10	380	0.13	RoHS
AHW3225F-681KTF	680μH	±10%	1	10	6	2	90.00	RoHS
AHW3225F-621KTF	620μH	±10%	1	10	8	2	85.00	RoHS
AHW3225F-561KTF	560μH	±10%	1	10	8	3	60.00	RoHS
AHW3225F-471KTF	470μH	±10%	1	40	8	2	42.00	RoHS
AHW3225F-331KTF	330μH	±10%	1	55	8	2.3	35.00	RoHS
AHW3225F-221KTF	220μH	±10%	1	65	8	2.6	30.00	RoHS
AHW3225F-101KTF	100μH	±10%	1	100	6	10	13.00	RoHS
AHW3225F-820KTF	82μH	±10%	1	100	6	10	13.00	RoHS
AHW3225F-680KTF	68μH	±10%	1	100	6	10	13.00	RoHS
AHW3225F-560KTF	56μH	±10%	2.5	125	8	8	5.60	RoHS
AHW3225F-470KTF	47μH	±10%	2.5	140	15	10	5.20	RoHS
AHW3225F-330KTF	33μH	±10%	2.5	160	15	15	2.90	RoHS
AHW3225F-270KTF	27μH	±10%	2.5	160	15	20	2.80	RoHS
AHW3225F-220KTF	22μH	±10%	2.5	210	15	20	2.40	RoHS
AHW3225F-180KTF	18μH	±10%	2.5	215	15	22	2.05	RoHS
AHW3225F-150KTF	15μH	±10%	2.5	225	15	22	2.00	RoHS
AHW3225F-120KTF	12μH	±10%	2.5	300	15	25	1.80	RoHS
AHW3225F-100KTF	10μH	±10%	2.5	300	15	30	1.00	RoHS
AHW3225F-8R2KTF	8.2μH	±10%	7.9	305	15	33	1.60	RoHS
AHW3225F-6R8KTF	6.8μH	±10%	7.9	310	18	35	1.50	RoHS
AHW3225F-5R6KTF	5.6μH	±10%	7.9	320	18	50	2.00	RoHS
AHW3225F-4R7KTF	4.7μH	±10%	7.9	350	18	60	1.30	RoHS
AHW3225F-3R3KTF	3.3μH	±10%	7.9	400	20	150	1.20	RoHS
AHW3225F-2R2KTF	2.2μH	±10%	7.9	450	30	175	0.80	RoHS
AHW3225F-1R8KTF	1.8μH	±10%	7.9	450	20	195	0.80	RoHS
AHW3225F-1R5KTF	1.5μH	±10%	7.9	450	20	200	0.40	RoHS
AHW3225F-1R2KTF	1.2μH	±10%	7.9	450	20	200	0.40	RoHS
AHW3225F-1R0KTF	1μH	±10%	7.9	450	20	200	0.40	RoHS
AHW3225F-R82KTF	0.82μH	±10%	7.9	450	20	200	0.40	RoHS
AHW3225F-R56KTF	0.56μH	±10%	25	450	20	180	0.55	RoHS
AHW2520F-820KTF	82μH	±10%	2.5	100	8	6	20.00	RoHS
AHW2520F-680KTF	68μH	±10%	2.5	145	10	6	13.50	RoHS
AHW2520F-560KTF	56μH	±10%	2.5	170	10	8	12.00	RoHS
AHW2520F-470KTF	47μH	±10%	2.5	160	10	10	10.70	RoHS
AHW2520F-390KTF	39μH	±10%	2.5	180	10	16	10.00	RoHS
AHW2520F-330KTF	33μH	±10%	2.5	200	10	12	7.00	RoHS
AHW2520F-220KTF	22μH	±10%	2.5	270	12	22	6.14	RoHS
AHW2520F-180KTF	18μH	±10%	2.5	160	12	26	4.00	RoHS
AHW2520F-150KTF	15μH	±10%	2.5	280	12	30	3.70	RoHS
AHW2520F-100KTF	10μH	±10%	2.5	300	12	60	2.95	RoHS
AHW2520F-8R2KTF	8.2μH	±10%	7.9	330	15	65	2.65	RoHS
AHW2520F-6R8KTF	6.8μH	±10%	7.9	360	15	70	2.00	RoHS
AHW2520F-5R6KTF	5.6μH	±10%	7.9	380	15	80	1.80	RoHS
AHW2520F-4R7KTF	4.7μH	±10%	7.9	400	18	90	2.00	RoHS
AHW2520F-3R9KTF	3.9μH	±10%	7.9	300	18	105	2.30	RoHS
AHW2520F-3R3KTF	3.3μH	±10%	7.9	450	18	120	1.46	RoHS
AHW2520F-2R7KTF	2.7μH	±10%	7.9	490	18	135	1.28	RoHS
AHW2520F-2R2KTF	2.2μH	±10%	7.9	520	18	150	1.10	RoHS
AHW2520F-2R0KTF	2μH	±10%	7.9	550	18	160	1.10	RoHS
AHW2520F-1R8KTF	1.8μH	±10%	7.9	600	18	170	0.84	RoHS
AHW2520F-1R5KTF	1.5μH	±10%	7.9	630	18	190	0.76	RoHS
AHW2520F-1R2KTF	1.2μH	±10%	7.9	650	18	210	0.68	RoHS
AHW2520F-1R0KTF	1μH	±10%	7.9	700	18	230	0.62	RoHS
AHW2520F-R90KTF	0.9μH	±10%	7.9	1400	20	300	0.35	RoHS
AHW2520F-R82KTF	0.82μH	±10%	7.9	700	12	230	0.62	RoHS
AHW2520F-R68KTF	0.68μH	±10%	7.9	700	12	230	0.62	RoHS
AHW2520F-R56KTF	0.56μH	±10%	7.9	700	12	230	0.62	RoHS
AHW2520F-R47KTF	0.47μH	±10%	25	700	12	600	0.27	RoHS
AHW2520F-R39KTF	0.39μH	±10%	7.9	500	12	400	0.40	RoHS
