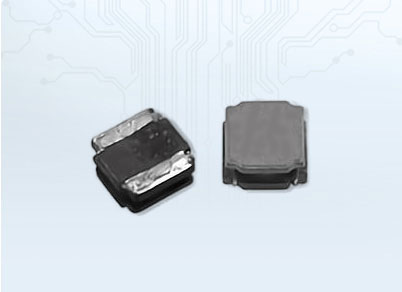

● The Fe based metal material magnetic core provides a large saturation current.
● The metallization on the ferrite core has excellent impact resistance and non-destructive durability.
● Closed magnetic circuit design reduces leakage flux and electromagnetic interference (EMI).
● Low DCR reduces power loss, has a small and slim size, and occupies less PCB space.
● Automated production ensures high quality and consistency.
● Operating temperature: -40 ℃~+125 ℃
| Part Number | Inductance @100kHz,1V | Inductance Tolerance | Heat Rating Current Max. | Saturation Current Max. | DC Resistance Typ. | RoHS |
|---|---|---|---|---|---|---|
| Units | μH | - | A | A | Ω | - |
| Symbol | L | - | Irms | Isat | DCR | - |
