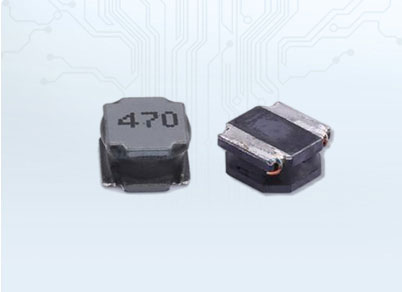

ANR series-Wire Wound SMD Power Inductors

● Various high-power inductors with high saturation.

● Suitable for surface mounting.

● Occupying less PCB space and low loss.

● The magnetic resin shielding structure reduces buzzing noise to ultra-low levels.

● Closed magnetic circuit design to reduce magnetic flux leakage and electromagnetic interference.

● Working temperature: -40 ℃~+125 ℃.

Download
Part NumberInductance
@100kHz,1V		Inductance
Tolerance		Heat Rating Current Max.Saturation Current Max.DC Resistance Typ.RoHS
UnitsμH-AAΩ-
SymbolL-IrmsIsatDCR-
ANR8040T620M62μH±20%1.32 1.52 0.235RoHS
ANR8040T560M56μH±20%1.47 1.57 0.19RoHS
ANR8040T510M51μH±20%1.52 1.73 0.183RoHS
ANR8040T470M47μH±20%1.57 1.78 0.175RoHS
ANR8040T430M43μH±20%1.67 1.93 0.146RoHS
ANR8040T390M39μH±20%1.73 1.98 0.138RoHS
ANR8040T360M36μH±20%1.78 2.03 0.132RoHS
ANR8040T330M33μH±20%1.83 2.08 0.125RoHS
ANR8040T270M27μH±20%2.03 2.18 0.1RoHS
ANR8040T220M22μH±20%2.13 2.44 0.089RoHS
ANR8040T180M18μH±20%2.44 2.74 0.068RoHS
ANR8040T150M15μH±20%2.64 2.99 0.06RoHS
ANR8040T120M12μH±20%2.84 3.55 0.052RoHS
ANR8040T100M10μH±20%3.35 3.65 0.038RoHS
ANR8040T8R2M8.2μH±20%3.50 4.26 0.034RoHS
ANR8040T6R8M6.8μH±20%3.65 4.62 0.031RoHS
ANR8040T6R2M6.2μH±20%3.91 4.52 0.027RoHS
ANR8040T5R6M5.6μH±20%3.91 6.09 0.027RoHS
ANR8040T5R1M5.1μH±20%4.11 4.77 0.025RoHS
ANR8040T4R7M4.7μH±20%4.16 5.99 0.025RoHS
ANR8040T3R9M3.9μH±20%4.42 5.84 0.022RoHS
ANR8040T3R6M3.6μH±20%4.42 7.63 0.022RoHS
ANR8040T3R3M3.3μH±20%4.47 6.60 0.022RoHS
ANR8040T3R0M3μH±20%4.77 6.19 0.018RoHS
ANR8040T2R2M2.2μH±20%5.23 7.21 0.016RoHS
ANR8040T2R0M2μH±20%5.23 9.39 0.016RoHS
ANR8040T1R5M1.5μH±20%5.73 8.27 0.013RoHS
ANR8040T1R2M1.2μH±20%5.73 10.15 0.013RoHS
ANR8040T1R0M1μH±20%6.39 10.00 0.01RoHS
ANR8040TR82M0.82μH±20%6.39 14.01 0.01RoHS
ANR6045T152M1500μH±20%0.21 0.24 8.1RoHS
ANR6045T102M1000μH±20%0.30 0.30 5.85RoHS
ANR6045T681M680μH±20%0.33 0.43 3.25RoHS
ANR6045T471M470μH±20%0.43 0.51 2.34RoHS
ANR6045T331M330μH±20%0.58 0.58 1.651RoHS
ANR6045T221M220μH±20%0.60 0.71 1.084RoHS
ANR6045T151M150μH±20%0.71 0.81 0.754RoHS
ANR6045T121M120μH±20%0.78 0.86 0.623RoHS
ANR6045T101M100μH±20%0.81 0.96 0.563RoHS
ANR6045T910M91μH±20%0.86 1.02 0.462RoHS
ANR6045T820M82μH±20%0.91 1.07 0.5RoHS
ANR6045T750M75μH±20%0.96 1.17 0.393RoHS
ANR6045T680M68μH±20%1.02 1.22 0.376RoHS
ANR6045T620M62μH±20%1.12 1.27 0.303RoHS
ANR6045T560M56μH±20%1.12 1.32 0.287RoHS
ANR6045T510M51μH±20%1.17 1.37 0.266RoHS
ANR6045T470M47μH±20%1.22 1.42 0.26RoHS
ANR6045T430M43μH±20%1.22 1.65 0.257RoHS
ANR6045T390M39μH±20%1.27 1.52 0.232RoHS
ANR6045T360M36μH±20%1.42 1.64 0.223RoHS
ANR6045T330M33μH±20%1.47 1.67 0.178RoHS
ANR6045T300M30μH±20%1.52 1.73 0.17RoHS
ANR6045T270M27μH±20%1.67 1.93 0.132RoHS
ANR6045T220M22μH±20%1.83 2.08 0.116RoHS
ANR6045T180M18μH±20%1.88 2.23 0.104RoHS
ANR6045T150M15μH±20%2.08 2.54 0.088RoHS
ANR6045T120M12μH±20%2.23 2.84 0.074RoHS
ANR6045T100M10μH±20%2.49 3.25 0.062RoHS
ANR6045T9R1M9.1μH±20%2.64 3.40 0.055RoHS
ANR6045T8R2M8.2μH±20%2.64 3.96 0.06RoHS
ANR6045T7R5M7.5μH±20%2.94 3.55 0.044RoHS
ANR6045T6R8M6.8μH±20%3.05 3.96 0.04RoHS
ANR6045T6R3M6.3μH±20%3.05 4.50 0.04RoHS
ANR6045T6R2M6.2μH±20%3.05 4.50 0.04RoHS
ANR6045T5R6M5.6μH±20%3.20 4.21 0.038RoHS
ANR6045T5R1M5.1μH±20%3.35 4.47 0.034RoHS
ANR6045T4R7M4.7μH±20%3.35 5.04 0.034RoHS
ANR6045T4R5M4.5μH±20%3.35 5.04 0.034RoHS
ANR6045T4R3M4.3μH±20%3.55 4.52 0.03RoHS
ANR6045T3R6M3.6μH±20%3.76 5.33 0.027RoHS
ANR6045T3R3M3.3μH±20%3.76 5.99 0.027RoHS
ANR6045T3R0M3μH±20%3.86 5.68 0.026RoHS
ANR6045T2R7M2.7μH±20%4.36 5.84 0.02RoHS
ANR6045T2R3M2.3μH±20%3.55 6.09 0.027RoHS
ANR6045T2R2M2.2μH±20%4.67 6.85 0.023RoHS
ANR6045T1R8M1.8μH±20%5.02 7.71 0.016RoHS
ANR6045T1R5M1.5μH±20%5.02 8.93 0.016RoHS
ANR6045T1R3M1.3μH±20%5.48 8.48 0.013RoHS
ANR6045T1R2M1.2μH±20%5.48 8.48 0.016RoHS
ANR6045T1R0M1μH±20%5.22 10.00 0.014RoHS
ANR6045TR82M0.82μH±20%5.99 10.51 0.013RoHS
ANR6045TR68M0.68μH±20%5.79 11.17 0.012RoHS
ANR6045TR56M0.56μH±20%6.60 14.21 0.012RoHS
ANR6045TR47M0.47μH±20%6.60 15.23 0.012RoHS
ANR6040T150M15μH±20%2.05 2.50 0.088RoHS
ANR6040T100M10μH±20%2.45 3.20 0.062RoHS
ANR6028T102M1000μH±20%0.23 0.18 7.54RoHS
ANR6028T471M470μH±20%0.33 0.28 3.505RoHS
ANR6028T401M400μH±20%0.41 0.30 2.78RoHS
ANR6028T221M220μH±20%0.50 0.40 1.729RoHS
ANR6028T151M150μH±20%0.70 0.80 0.78RoHS
ANR6028T101M100μH±20%0.71 0.66 0.774RoHS
ANR6028T820M82μH±20%0.71 0.81 0.644RoHS
ANR6028T750M75μH±20%0.82 0.91 0.528RoHS
ANR6028T680M68μH±20%0.87 0.81 0.463RoHS
ANR6028T560M56μH±20%0.90 1.07 0.445RoHS
ANR6028T470M47μH±20%1.08 1.17 0.406RoHS
ANR6028T390M39μH±20%1.12 1.27 0.29RoHS
ANR6028T360M36μH±20%1.15 1.27 0.277RoHS
ANR6028T330M33μH±20%1.24 1.37 0.239RoHS
